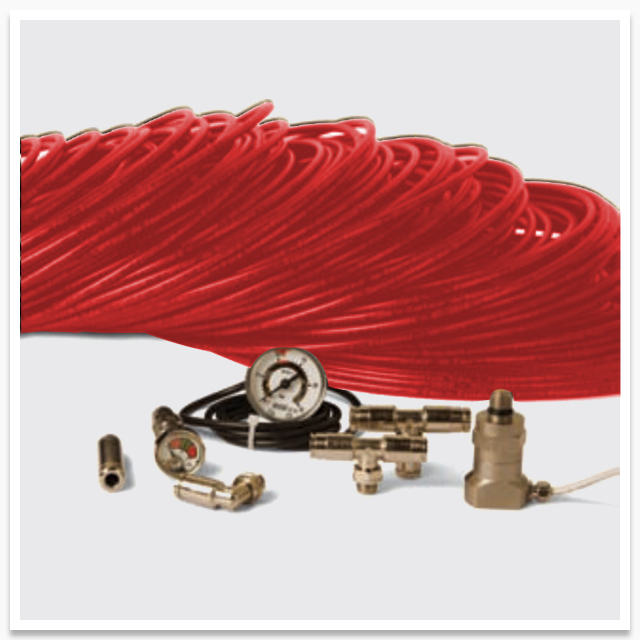

| Factory-Fabricated Freez Firz Direct Low Pressure Fast Action System |
|
|
|
|
|
| The Freez Firz Design Cell has carried out in-depth studies of common applications of this product in the Indian market, and created four pre-fabricated variants of this product, which can be installed in smaller facilities whose requirements match the specifications of the systems. They are designed with utmost precision, and come with complete sets of accessories to fulfil all the requirements. |
| |
|
|
|
|
| |
| Technical Details : |
| Capacity |
Tube Length |
Contents |
Accessories |
Coverage |
Ideal Application |
| 2 kg |
3 m |
HCFC 123 |
Pressure monitoring switch, end-of-line adapter, end of line plug, one 'elbow' or one 'T', 6 clips and control panel |
2.85 m3 |
Small electrical panels up to 1 m high, Network Switch Panels, Singleserver racks, Gensets up to 10 kVA, UPS up to 10 kVA, small CNC machines |
| 4 kg |
4 m |
HCFC 123 |
Pressure monitoring switch, end-of-line adapter, end of line plug, one 'elbow' or one 'T', 8 clips and control panel |
5.70 m3 |
Medium electrical panels up to 1.5 m high, Network Switch Panels, Server racks for 1 to 3 servers, Gensets up to 50 kVA, UPS up to 20 kVA, medium CNC machines |
| 6 kg |
5 m |
HCFC 123 |
Pressure monitoring switch, end-of-line adapter, end of line plug, one 'elbow' or one 'T', 10 clips and control panel |
8.55 m3 |
Medium to large electrical panels up to 3 m high, Network Switch Panels, Server racks for 1 to 4 servers, Gensets up to 75 kVA, UPS up to 30 kVA, medium to
large CNC machines |
| 9 kg |
6 m |
HCFC 123 |
Pressure monitoring switch, end-of-line adapter, end of line
plug, one 'elbow' or one 'T', 12 clips and control panel |
12.82 m3 |
Large electrical panels up to 3.5 m high, Network Switch Panels, Server racks for up to 5 servers, Gensets up to 100 kVA, UPS up to 50 kVA, large to very large CNC machines |
|
|
|
|
|
