| Novec fire protection fluid is a next generation clean agent Halon alternative. It combines outstanding extinguishing performance with an excellent environmental profile. Novec fire protection fluid has zero ozone depletion potential, a global warming potential of one, a five day atmospheric lifetime, and a large margin of safety for occupied spaces. Novec fire protection fluid extinguishes fire primarily by removing heat from the fire. It is also electrically non-conductive. |
| |
| Each system consists of the following components and their associated accessories: |
|
 |

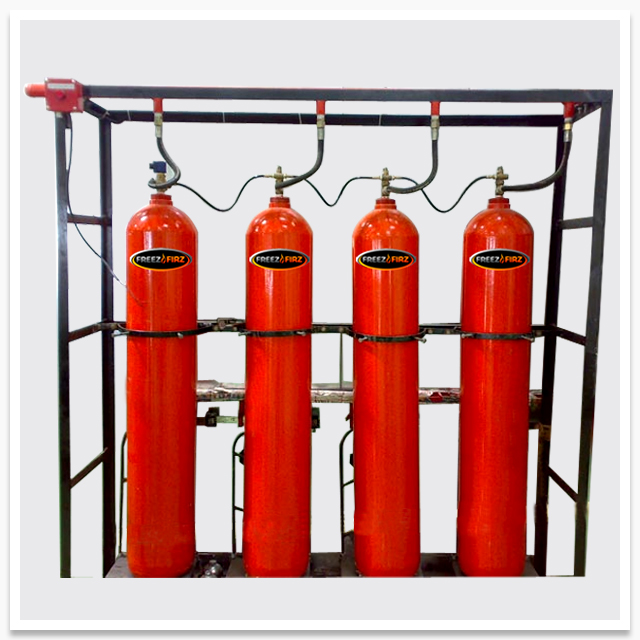

Agent Storage Components - Storage components consist of the cylinder assembly(s), which contains the Novec fluid, and the cylinder bracket(s), which holds the cylinder assembly securely in place. |
|
|
|
|
|
|
|
Agent Storage Components - Storage components consist of the cylinder assembly(s), which contains the Novec fluid, and the cylinder bracket(s), which holds the cylinder assembly securely in place. |
|
|
|
Agent Fluid Distribution Components - Distribution components consist of the discharge nozzles used to introduce the Novec fluid into a protected hazard along with the associated piping system used to connect the nozzles to the cylinder assembly. |
|
|
|
Trim Components - Trim components complete the installation of the suppression system and consist of connection fittings, pressure gauge, low-pressure supervisory switch, electric valve actuator, and manual valve actuator. |
|
|
|
Slave Arrangement Components - Slave arrangement components consist of the pneumatic valve actuator(s), actuation check valve, vent check, actuation hose, and fittings required for a multiple cylinder (slave) arrangement. |
|
|
|
Supplemental Components - Supplemental components include the discharge pressure switch and manifold check valve. They supplement the core equipment or complete a specific multi-cylinder configuration. |
|
|
|
Control Panel - This device monitors the condition of the electric actuator, detectors, warning devices, cylinder pressure, and any manual release and abort stations. All electric or electronic devices must connect to the control panel in order to function. |
|
|
|
Detection and Alarm Devices - Detection devices coupled with manual release and abort stations maximize system efficiency while audible and visual alarm devices alert staff of alarm conditions. |
|
| |
| Equipment Description : |
Fire suppression systems utilizing Novec fluid are designed to be discharged within 10 seconds into a room, area, or enclosure with the structural integrity to retain the agent. The Freez Firz fluid uniformly mixes throughout the protected area achieving a minimum concentration level in accordance with NFPA 2001 and/or agency listings.
Freez Firz Systems cylinder assemblies are available at either 360 psi (24.8 bar) or 500 psi (34.48 bar) storage pressures for Novec fluid. Storage at 500 psi allows the capability to pipe greater distances, to use smaller diameter piping, and to design more complex piping configurations. |
|
|
|
|
